REVEAL THE UNSEEN
FOR OPTIMAL MONITORING:
MAINTENANCE FORECAST AND REPORT
LINALYZER & LINALYZER to GO
#trusttheinventor

Using the Handheld LINALYZER to GO – How It Works

You are currently viewing a placeholder content from Youtube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationINNOVATIVE PRECISION
Linsinger Maschinenbau GmbH‘s new modular measuring system “LINALYZER” offers an exceptional ease of use from setup to analysis. So simple that it is a child‘s play to use. It evaluates high-quality data meeting the rising demands for rail network safety and availability.

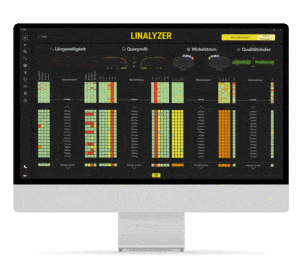

Ensuring critical information stands out with effective data preparation and visualization. This is essential for future cost savings and maintaining optimal rail conditions.
NEW: LINALYZER to GO – the easy way to understand rail condition and making the right maintenance decisions. A compact, flexible handheld device -ready to be used anytime, anywhere and within moments.

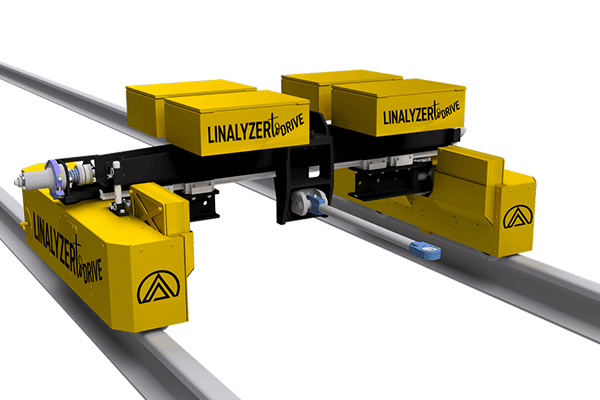

Inspection unit
High-precision measuring unit
for comprehensive rail condition
assessment.
- Speed: Up to 30 km/h
- Dimensions: 0.91 x 1.99 x 0.7 m
- Weight: 300 kg
- Also available as a towable-only version

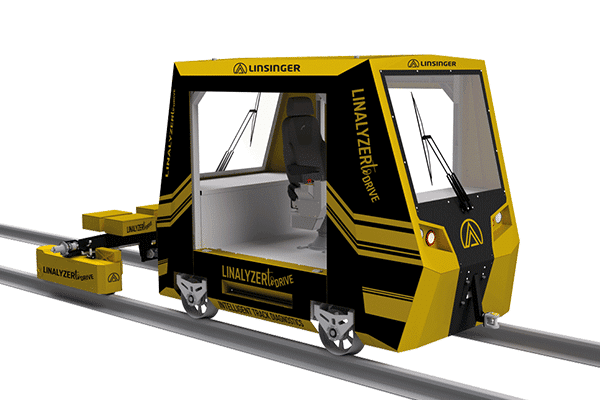

Drive unit
Fully electric drive unit for safe,
silent and sustainable operation
- Speed: Up to 30 km/h
- Fully electric
- Battery life: 6 h
- Dimensions: 3.38 x 1.72 x 2.24 m
- Weight: 1,400 kg
- Bidirectional operation
- Crane Lifting Points

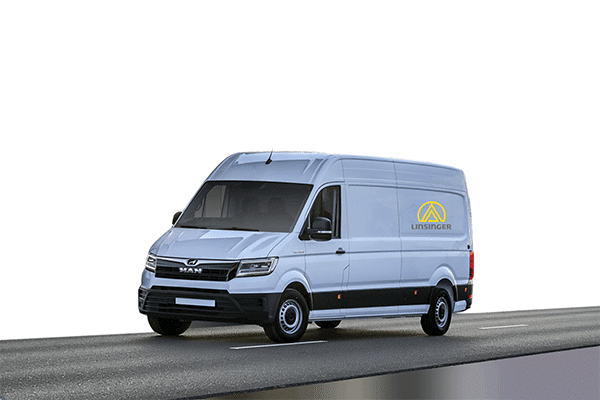

Transport vehicle
For safe transportation and quick
deployment on site.
- MAN TGE: B Licence
- Dimensions: 6.8 x 2.4 x 2.3 m
